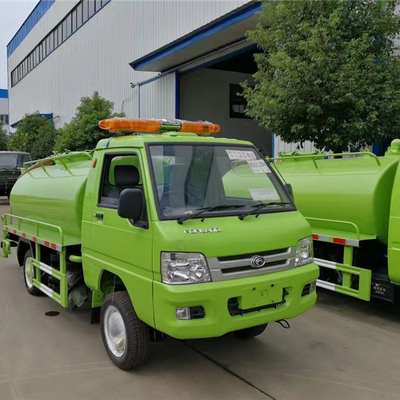

Small fecal sunction trucks sewage suction truck for sale
Fecal Suction Truck 2 m3 is called Fecal suction vehicle, mainly used in pumping stool,polluted water,sludge,floating debris in all kinds of city's municipal sanitation, agriculture,factory,district,etc.
Features:self-priming, self-discharging, high efficiency.
Basic equipment: inspect fecal window, gravity mouth, cleaning apparatus, fecal suction pipe, oil-water separators, overflow valve Fecal suction gun, special vacuum pump(rating rotate speed=1400r/m, min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, steering:clockwise)
Main Features: self-priming, self-discharging, high efficiency,Time for full suction<5min
Tank material optional:carbon steel, stainless steel, epoxy resin anti corrosive processing(in order to contain partial chemical sewage or industrial waste water).
WHAT IS THE SPECIFICATION OF HIGH PRESSURE VACUUM SUCTION VEHICLE? | |||
General Description | |||
Overall Dimension(mm) | 5995*2050*2200 | tanker Dimension(mm) | 3800*1100*700 |
Gross weight (kg) | 4400 | Driving type | 4*2, left hand drive |
Curb weight (kg) | 2705 | Rated loading capacity kg | 1500 |
Wheel base (mm) | 3200 mm 3360mm 3500mm | Axle number | 2 |
Approaching/Departure Angle(°) | 17/14.5(°) | F/R Axle load(kg) | 1760/2640 |
Passengers in cab | 2/3 | Maximum speed(km/h) | 95(Km/h) |
Number of Tyres | 6 (1 spare piece) | Tyre type | 7.00-16 |
Front/Rear suspension(mm) | 1100/1695(mm) | Front/Rear track base (mm) | 1506 1466 |
Transmission | 5speed forward with 1 reverse, manual | Fuel type | Diesel oil |
Engine parameters | |||
Brand | Chaochai | Model | CY4102-C3F |
Displacement (L) | 3.856 L | Emission Standard | EURO 3 |
Maximum power output | 70KW | Maximum horsepower | 95HP |
Number of cylinders | 4 | Cylinder spread pattern | In-line |
Intake type | Supercharged and mid-cooling | Rated rotation(rpm) | 3200 |
Tank body | |||
Tank capacity(L) | 2000L | Tank material | QB235 Carbon steel |
Q1. What is your terms of packing?
A: Generally, our cargo is suitable for naked or waxed packing, in container or bulk ship or RO-RO ship according to the size of the cargo.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
We can produce 300kinds of different special vehicals as follow
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer
/ low bed trailer / van container trailer / warehouse trailer, etc. )
Shipping by bulk ship or container or RORO ship or as per your requirement
Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.Should you have any other questions or need any other information, pls feel free to contact Doreen. It would be my great pleasure to be on your service. Pls check my contact information as following:
