Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Transmission Type: Manual

Condition: New

Emission Standard: Euro 3

Fuel Type: Diesel

Tank Volume: 12000L

è½¦èº«å°ºå¯¸: 8500x2400x3200

Horsepower: 266

Gross Vehicle Weight: 15800

Product name: Sewage Vacuum Tank Trucks

Color: Request Customized

Chassis brand: Sinotruk

Drive wheel: 4X2

Pump: Special Vacuum Pump

Tank capacity: 12CBM

After-sales Service Provided: Service Machinery Overseas

Certificate: ISO9001 CCC

Tank Material: Q235 Carbon Steel Stainless Steel

Engine: 266HP

Información básica

Certificación: ISO9001 CCC

Pago y Envío Términos

Packaging Details: Containers, ro-ro ships, deck ships

Descripción de producto

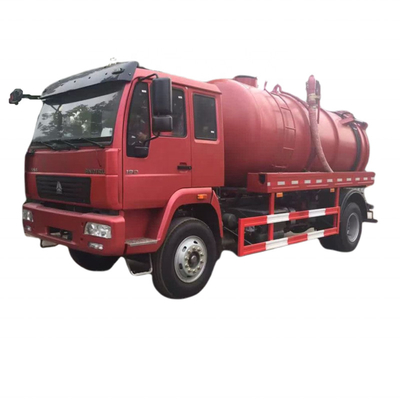

sinotruk 10 ton septic truck vacuum sewage suction truck for sale

I . DETAILED VIEW OF SEWAGE SUCTION TRUCK

II. SPECIFICATION OF SEWAGE SUCTION TRUCK

Product	Sewer Flushing truck
Cab	Single row,Left/right hand drive with AC
Chassis	Brand	Dongfeng
	Chassis model	DFA1070SJ41D6
	Drive type	4x2
	Tire Spec.	7.00-16 14PR,7.00R16 14PR,7.50-16 14PR,7.50R16 14PR
	Tire Numbers	6
	Braking System	Air braking
	Clutch	Uniwafer, dry clutch, hydraulic remote control
	Transmission	Manual
Engine	Model	ZD30D13-4N
	Horse Power(hp)	130
	Displacement(cc)/ Power(kw)	2950/96
	Emission	EuroIII/EuroIV
Main Parameters	Overall dimension (LWH/mm)	5950x1940x2550
	Wheelbase(mm)	3350, 3308
	Axles No.	2
	GVW(kg)	7320
	Curb Weight(kg)	4325
	Leaf spring No.	6/5+5
	Approaching/Departure Angle(°)	22/18
	Front/Rear track(mm)	1595/1458
	Front/Rear suspension(mm)	1053/1547
	Max speed(km/h)	100
	Front/Rear Axle Load(kg)	2930/4390
Modified Description	1. Volume:3-18m³,round tanker,made by 5-6mm special plate.
	2. Equipped with high-power vacuum suction sewage pump.single pump/double pump(out and in) .
	3. Tanker with lifting founction,with double hydraulic cylinder,rear cover can hydraulic open,with self-flowing valve
Vacuum Pump Paramenters	Model	50QZXDG-45/400
	The Theory Pumping Speed L/S	45
	The Theory Pumping Speed L/S	45
	Axle Power (kw)	4
	Rotation Speed (r/mm)	500
	Absolute Pressure of work (Vacuum)	400Pa(99.6%)
Composition	Basic composition:chassis,suction tanker, vacuum pump,PTO,pipes,valve and double hydraulic cylinder.
Purpose	This truck is mainly used for urban water wells and the examination of the wells. Help sucking, loading and unloading the sediment in various kinds of channels in the sludge, sewage or petrochemical sewage pool.

III. DESCRIPTION OF SEWAGE SUCTION TRUCK

IV . SEWAGE SUCTION TRUCK SERIES

V . SEWAGE SUCTION TRUCK WORKSHOP

VI . TRANSPORTATION & SHIPPING

VII . ABOUT US
