4x2 5 cubic meter sewage fecal suction truck brand new for sale

1 Unit
MOQ
$13,600.00(>=1 Units)
Precio
4x2 5 cubic meter sewage fecal suction truck brand new for sale
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Transmission Type: Manual
Condition: New
Emission Standard: Euro 2
Fuel Type: Diesel
Tank Volume: 5 cubic meter
车身尺寸: 6388*2100*2550mm
Horsepower: 95hp
Gross Vehicle Weight: 4450
After-sales Service Provided: Overseas Call Centers, Free spare parts
Capacity (Load): 1-10T
Tank dimension: 3500*1750*1150mm
Chassis brand: Dongfeng
Wheel base: 3300mm
Engine model: 4100QBZ
Displacement/Power: 3300ml/70Kw
Emission standard: Euro2
Cab type: Flat head and single row
Transmission: Manuel
Tank volume: 4750L
Tank thickness: 5mm
Información básica
Model Number: 4100QBZ
Pago y Envío Términos
Packaging Details: Nude
Descripción de producto
Product Description

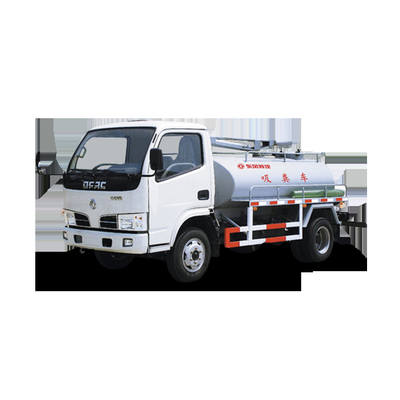

Dongfeng Fecal suction truck

The composition of the suction truck: Fecal suction truck is mainly composed of automobile chassis, tank body, and fecal suction device. Commonly used models include Dongfeng Furica, Dongfeng Dolica, Dongfeng Tianjin, rear double axle, front four and eight rear models. The composition of the suction truck: oil-water separator, water-gas separator, special vacuum suction pump, volume pressure gauge, pipe network system, suction pipe, gravity valve, vacuum tank, communicating device (fecal window), automatic protection Overflow valve. Fecal suction truck, the main application range: Mainly for the urban and rural sanitation departments to suck and transport feces and other sewage. Suitable for suction of feces, sewage, sludge and liquids mixed with small suspended debris, suitable for municipal sanitation, large, medium and small industrial and mining enterprises, communities, schools, septic tank cleaning and transporting, urban pipeline cleaning and dredging, factory marsh Liquid biogas residue cleaning, etc.
Detailed Images
Specifications
Vehicle parameters DONGFENG
Overall dimensions
6388*2100*2550mm
Curb weight
4450kg
Tank dimensions
3500*1750*1150mm
Tank volume
4750L
Chassis parameters
Chassis model
EQ1080SJ8BDC
Chassis brand
DONGFENG
Overall dimensions
Wheel base
3300mm
Front/rear wheel track
1740/1586mm
Front/rear suspension
1150/1930mm
Approach/departure angle
20/14°
Maximum speed
80km/h
Chassis Manufacturer
Dongfeng Automobile Co.,Ltd
Cab
Configuration
Cab width: 1730mm，Single row cab，power-assisted steering，Camel battery (24V maintenance free)，Pneumatic brake system
Color
White,other color is optional
Engine
Model
4100QBZ
Emission
Euro 2
Type
in-line,4-stroke,water-cooled,diesel engine
Rated power
70KW/95hp 285N.m @3200rpm
Displacement
3300ml
Bore x stroke
100x118mm
Manufacturer
Yunnei Group
Tire
Size
7.00-16
Number
6+1 nos
Frame
188mm
Front axle
2.0T
Rear axle
4.0T
Drive form
4X2
Rated voltage
24V,DC
Transmissions
5 speed forward 1 reverse
Steering wheel
Left hand drive
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Fecal suction tank structure parameters
Tank dimensions
3500*1750*1150mm
Tank volume
4750L
Tank material
Carbon steel
Tank thickness
5mm
Color and Logo
Optional
Standard configuration
Chassis,sub frame,5mm carbon steel fecal tank,8 meters fecal suction pipe, rotating arm, vacuum pump,oil and gas separator, water
vapor separator, anti overflow valve, observation tube, gravity flow valve Φ220mm.
