HOWO 6X4 To 11CBM Sewage Vacuum Truck 16cbm Vacuum Waste Toilet Truck 4CBM

1 unit
MOQ
HOWO 6X4 To 11CBM Sewage Vacuum Truck 16cbm Vacuum Waste Toilet Truck 4CBM
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Transmission Type: Manual
Condition: New
Emission Standard: Euro 4
Fuel Type: Diesel
Tank Volume: 16000L
车身尺寸: 5995*2000*2550
Horsepower: 190HP
Gross Vehicle Weight: 14000
Product name: vacuum tanker suction truck
Chassis brand: Dongfeng or Howo or Shacman
Drive type: 4X2
Steering: Left Hand
Vacuum Pump: Rotary Pump
Suction hose: 4 inch
Tank capacity: 4CBM to 11CBM
Wheelbase: 3350+1300
Certificate: ISO9001 CCC
Color: As Per Customer's Request
Información básica
Certificación: ISO9001 CCC
Pago y Envío Términos
Packaging Details: This vacuum tanker suction truck in Nude packing,delivery by RORO ship or bulk vessle or as per customer's requirement.
Supply Ability: 10 Unit/Units per Month vacuum tanker suction truck
Descripción de producto

WECHAT No

+8615630470504

Notice

all the details just for reference, we can manufacture vacuum truck according to your requirement. and price could be negotiated.
Product Description

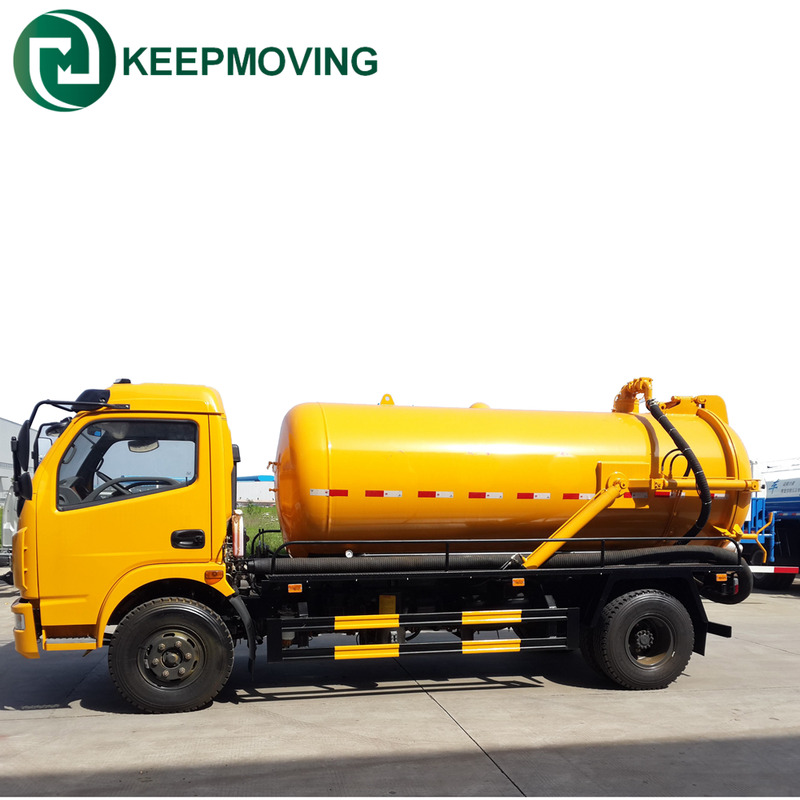

This vacuum tanker suction truck Suitable for suction,transportation and dumping soil and mud from various sewer man-hole,water wells and sediment.It is necessary tool for city sanitation department,waste processing company,big factory......,it can help to clean the sewer pipe undergroud,clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.More specification about the vacuum tank please kindly refer to following information .

No.
Main components
Detail Description
1
Chassis
Dongfeng brand 4X2,Engine is Euro 3 or 4 emission standard, There 2 pcs PTO to drive vacuum pump and all kinds of hydraulic equipment. Chassis Model will as per cusotmer's final confirm.
2
Vacuum tank
Tank Shape:Cylinder type ,Vacuum tank volume from 4CBM TO 10CBM,made by SS304L,6mm thickness shell. Design Pressure:-0.9 Bar.There some U shape strengthen rims outside the sludge tank body to offer stonger support to the tanker body. Hydraulic lift sylinder to lift up the tank body to outlet the sludge in 45 degree with safety support. Water level instrument locate in the rear of the tanker body.6 or 4 outlet valve in the rear to release the sludge.
3
Clean Water tank
Without Clean water tank
4
Rear Door
Controlled by Hydraulic,2 cylinders open the door,and 4 cylinders closed the door,6 suction pipe and 6 discharge valves.
5
Cooling water tank
1000L,located behind the Cab of the truck,use for cooling the vacuum pump.
6
Vacuum pump
Rotary Pump,400 to 800H/M air flow rate,vacuum rate 97%,vacuum pump can be choose according to customer's requirement.
7
High Pressure pump
Without high pressure pump
8
Others
Telescopic suction boom can be optional : Swivel in both the vertical and horizontal plane.300°horizontal rotation, 6m working radius and vertical lift up to 3m above ground.Dia 6" stailess and rubber suction hose. Painting All stainless steel parts will painted by primer and finish paint,sand blasting before painting,coloer as per customer's choose. Operation instructions This instruction will guide customer how to operation this truck. Training Before delivery:we can offer one or two days operation of the truck training in our factory.
9
Remarks
Above information just for reference,for further detail information please kindly contact Iris Huang.
Certifications

We have Obtained CCC,ISO9000,BV certificates,we also obtained many other Honorary certificate issued by loccal Government.

Products Overview

Our main products including Vacuum jetting truck,sewer jetting truck,Biogas liquid vacuum truck,oil tanker trailer,vacuum tank trailer,rear dumper trailer,lowbed trailer, container trailer,side wall cago trailer, chemical liquid tanker truck, bulk power goods tanker trailer,cement tanker trailer, water tanker semi trailer,full semi trailer,and so on. Total 100 style available for sales.

vacuum tanker suction truck Manufacturing Process----Rear door and tank assembly.

Detailed Images

The control panel mainly control vacuum pump working,it also control the hydraulic system and electrical system working,including working lights,alarm,emergency button and so on.

Packing & Delivery

Ready For Delivery:

vacuum tanker suction truck will in nude packing,delivery by Roro ship or by bulk vessel,or according to customer's requirement.

Service to Customers

We went to our customer's work site to offer after-sale service to our customer,our truck very famous in local market,many local TV Media come to make reports on local TV channel.

Customer Visit

Following are some of our customers came to visit us from different countries, we warm welcome more friends from all over the world come to visit us in the near future!!!
