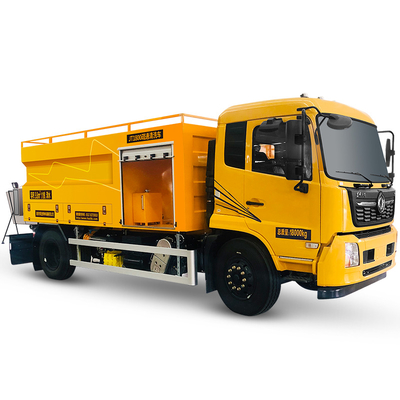

Dongfeng High Pressure Hydraulic Dredging and Jetting Sewer Cleaner Jetting to Dislodge Debris Sewage Cleaning Truck

1.0 unit
MOQ
Dongfeng High Pressure Hydraulic Dredging and Jetting Sewer Cleaner Jetting to Dislodge Debris Sewage Cleaning Truck
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Transmission Type: Manual
Condition: New
Emission Standard: EURO 5
Fuel Type: Diesel
Tank Volume: 9800L
车身尺寸: 7930*2530*2840 mm
Horsepower: 210
Gross Vehicle Weight: 18000
After-sales Service Provided: Online support
Capacity (Load): 1-10T
Product name: sewer jetting truck
Max working pressure: 170 bar
Dredging distance: ≥ 100 m
Nozzle: Imported
Function: High pressure dredging and jetting
Rate of flow: 333l/min
Información básica
Pago y Envío Términos
Packaging Details: Waxing before delivery,We can ship out trucks using bulk ship ,roro ship or container
Supply Ability: 2000 Acre/Acres per Month
Descripción de producto

Dongfeng sewer cleaner hydro jetting dislodge debris sewage cleaning truck

Product Description

Water tank body

Material

Mild steel

Capacity .

9,800L

Shell thickness

6mm

Tank fittings

A. Water inlet unit, including 2" filling valve, coupling, hose

B. Water outlet unit, including 2" discharge valve, coupling, hose

C. Liquid indicator on rear tank shell

D. Manhole 450mm diameter

E. Access ladder

Water level protection

A. Too high B. Too low C. No water

PTO

With two windows, one for driving high pressure water pump, the other one for driving hydraulic device.

High pressure water pump

Pump type

Pratissoli brand, from Italy

Water flow

333l/min

Max working pressure

170bar

Pressure adjust

Pressure can be freely adjusted between 0-170bar

Safety devices

A. Low water level protection

B. Solid particles protection

C. Winter frozen ice protection

Long and Reliable Cooperation Starts from This Moment You Click

Related Products
Company Information

Inheritting near six decades of production experience, Huaian Xianglong Special Purpose Vehicle Co.,Ltd has been one of the advanced enterprises engaging in production of high-end municiple maintenance vehicles, emergency rescue vehicles, combination vacuum jetting trucks etc...

Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…

Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.

Why choose us?

What's our factory Professional advantage?

1. Use Split shaft PTO(Transfer case),which is common in Euro and America.Comparing to sandwish PTO used by other Chinese supplier,our method doesn't need to break down transmission box and don't change the transmission accuracy.

2.Jetting water pressure id pneumatically controlled.Avoid the sudden high pressure which may happen if you choose three-way value supplied by other Chinese factory.Our pneumatic safety valve is from Italy together with the water pump.

3.Use Liquid ring vacuum pump.Comparing to air cooling vane pump,air flow up to 2800m3/h,-0.95bar vacuum level and long continuous work time due to water cooling type.

4.Reverse discharge capability discharges water and leaves sludge,reduces round trip times between drainage well and dumping site.

5.Jetting nozzle works with linear high pressure water flow,makes the most effective use the water pressure.

6.Multiple safety protections,includ ultrasonic liquid level indicator,float ball,pressure safety value at the top of tank and vacuum air lines.

Certifications

As municipal solution specialist,we factory always focus on Environment protection all around the world with high-end european quality and have already passed the safety approval as ISO9001,GS,SGS .Huaian XiangLong special purpose vehicle Co.,Ltd is a listing in Jiangsu Equity Exchange-stock Company,it's powerful symbols in China.

Our selling point is :Customization,High-end quality,Professional service,Innovation keep moving.

Our Services

We factory promises the following services:

1.Before sale----

Technical exchanges with customers,demonstrations,explore individual solutions.

2.Insale---

Fully implement the best customized solutions,enhance process control and optimization.

3.After-sale---

Free training,tracking guide,24 hours feedback service program.
